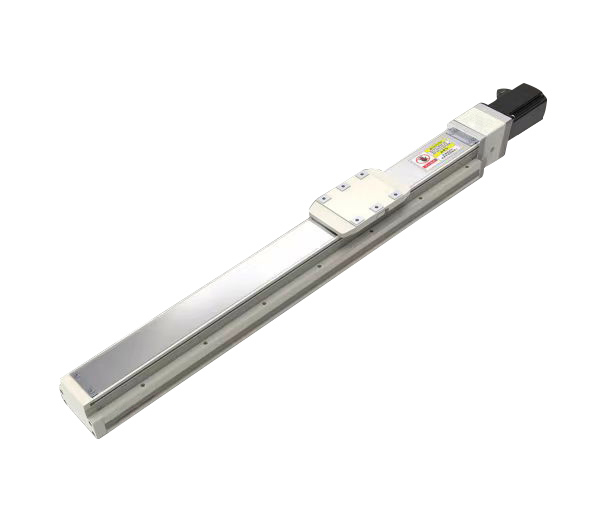

Aluminum embedded screw module

DMTH5 (54mm wide)

Features:

Series products are aluminum embedded structure, light weight, good rigidity; It has the characteristics of fast response, short positioning time, good dynamic performance and high rigidity. This series has complete specifications, including DMTH5, DMTH8, DMTH12 series.

Basic parameters:

Standard motor: Step 42, servo 100W

Position repetition accuracy: ±0.01mm

Screw lead: 5, 10mm

Speed ≤500mm/s

Movable weight: horizontal use ≤30kg; Vertical use ≤10kg

Standard effective stroke: 50~800mm/(50 interval)
