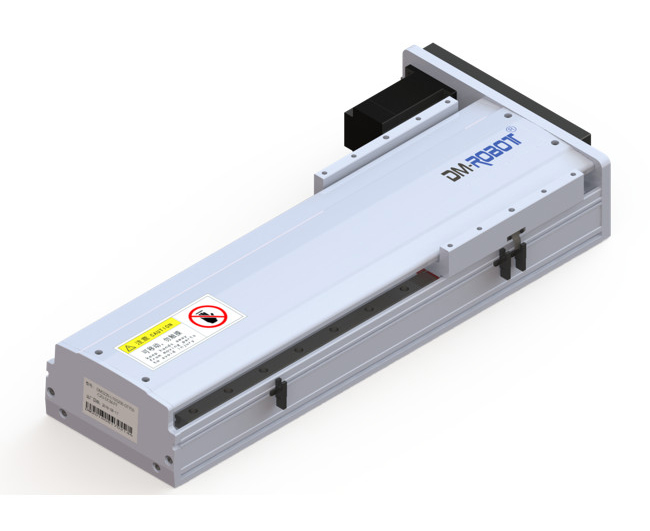

The general environment uses the lead screw module DMS220-CM

Features:

Series products are semi-closed screw structure, light weight, good rigidity; It has the characteristics of fast response, short positioning time, good dynamic performance and high rigidity. This series has complete specifications, including DMS45, DMS62, DMS65, DMS85, DMS100, DMS135, DMS150, DMS170, DMS220 series.

Basic parameters:

Standard motor: stepper 86, servo 750W

Position repetition accuracy: ±0.01mm

Screw lead: 5, 10, 25, 50mm

Speed ≤2500mm/s

Movable weight: horizontal use ≤150kg; Vertical use ≤55kg

Standard effective stroke: 50~1500mm/(50 interval)
