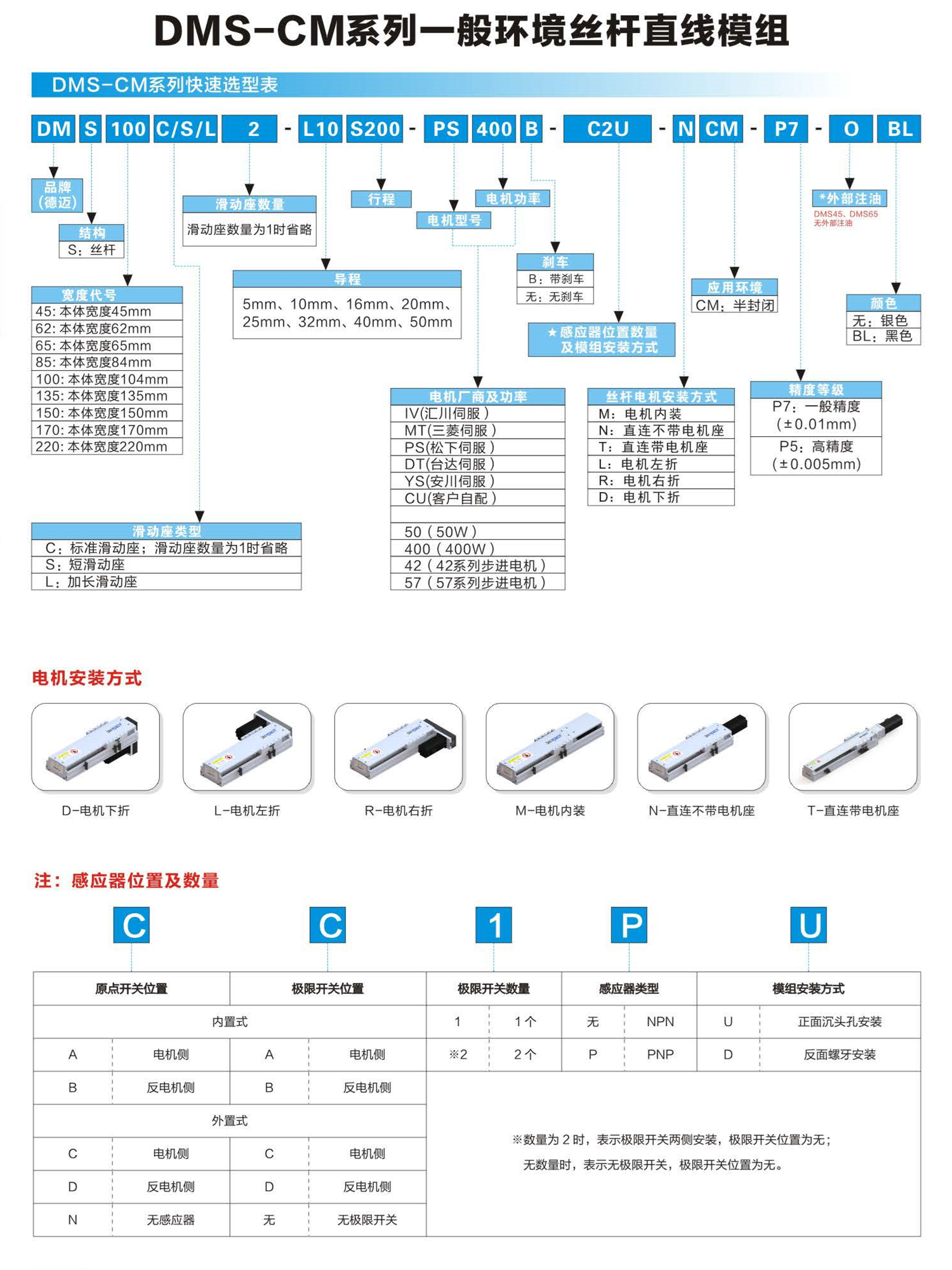

The general environment uses the lead screw module DMS150-CM

Features:

Series products are semi-closed screw structure, light weight, good rigidity; It has the characteristics of fast response, short positioning time, good dynamic performance and high rigidity. This series has complete specifications, including DMS45, DMS62, DMS65, DMS85, DMS100, DMS135, DMS150, DMS170, DMS220 series.

Basic parameters:

Standard motor: Step 57/86, servo 400/750W

Position repetition accuracy: ±0.01mm

Lead of screw: 5, 10, 20, 25, 40mm

Speed ≤2000mm/s

Movable weight: horizontal use ≤120kg; Vertical use ≤45kg

Standard effective stroke: 50~1250mm/(50 interval)
