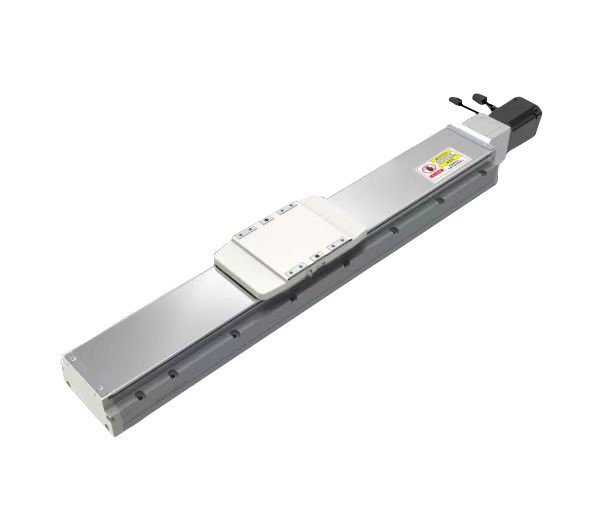

Aluminum embedded screw module DMTH12 (120mm wide)

Features:

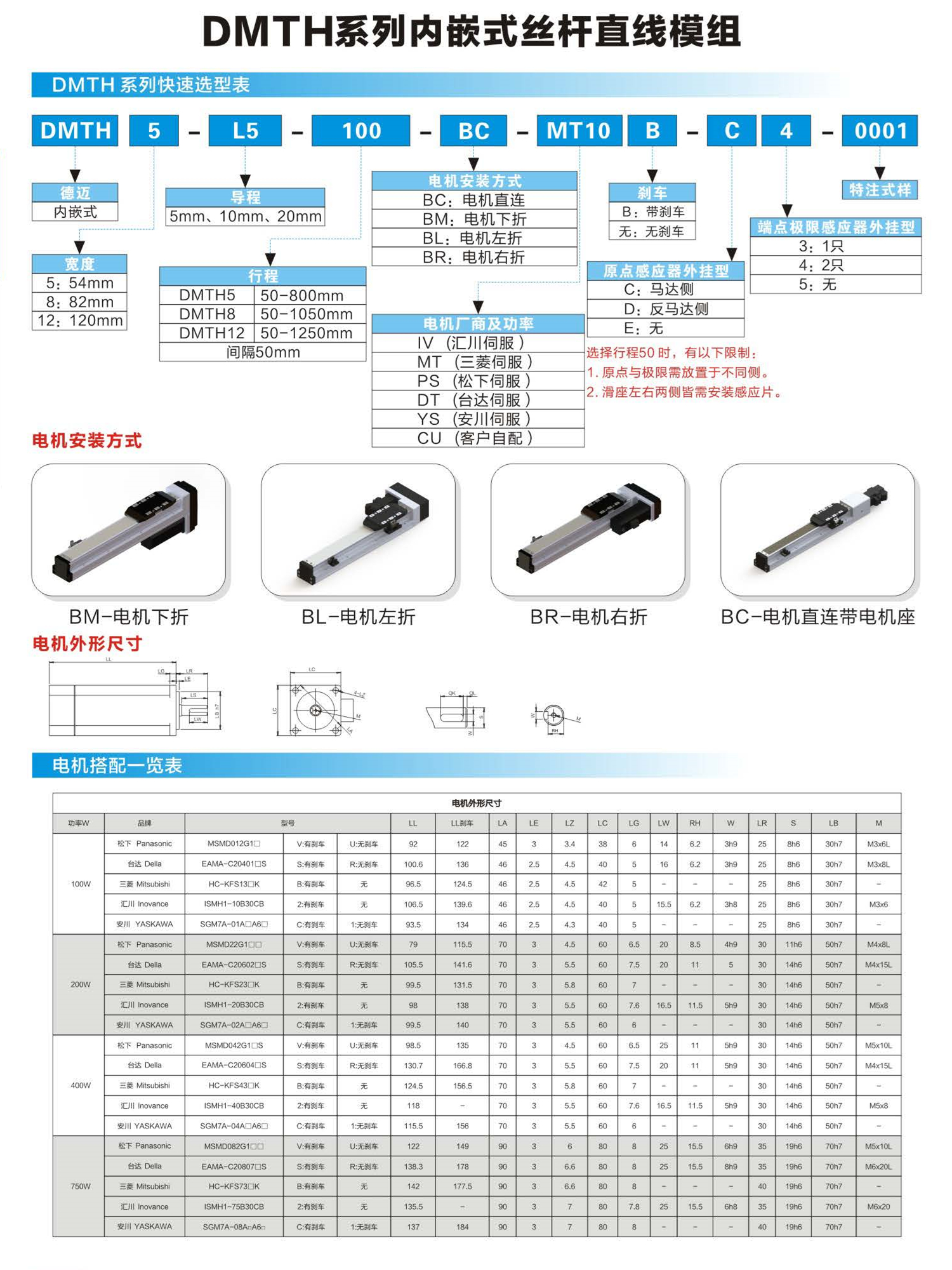

Series products are aluminum embedded structure, light weight, good rigidity; It has the characteristics of fast response, short positioning time, good dynamic performance and high rigidity. This series has complete specifications, including DMTH5, DMTH8, DMTH12 series.

Basic parameters:

Standard motor: Step 57/86, servo 200/400/750W

Position repetition accuracy: ±0.01mm

Lead of screw: 5, 10, 20, 32mm

Speed ≤1600mm/s

Movable weight: horizontal use ≤110kg; Vertical use ≤33kg

Standard effective stroke: 50~1250mm/(50 interval)
