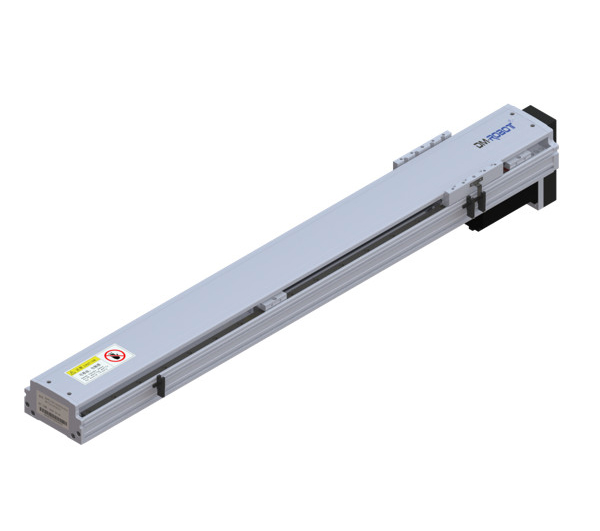

General environment long stroke lead screw module DMSL135-CM

Features:

Series products are semi-closed long stroke screw structure, light weight, good rigidity, can do ultra-long stroke; It has the characteristics of fast response, short positioning time, good dynamic performance and high rigidity. This series has complete specifications, including DMSL135, DMSL170, DMSL220 series.

Basic parameters:

Standard motor: Step 57/86, servo 200/400/750W

Position repetition accuracy: ±0.01mm

Lead of screw: 5, 10, 16, 20, 32mm

Speed ≤1280mm/s

Movable weight: horizontal use ≤80kg; Vertical use ≤30kg

Standard effective stroke: 50~2200mm/(50 interval)
