Features:

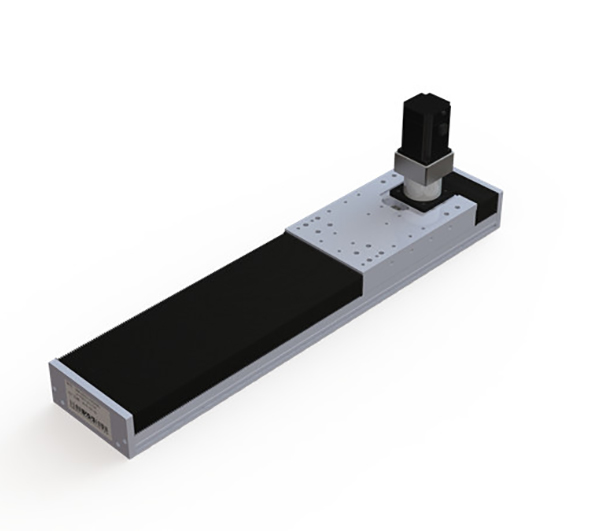

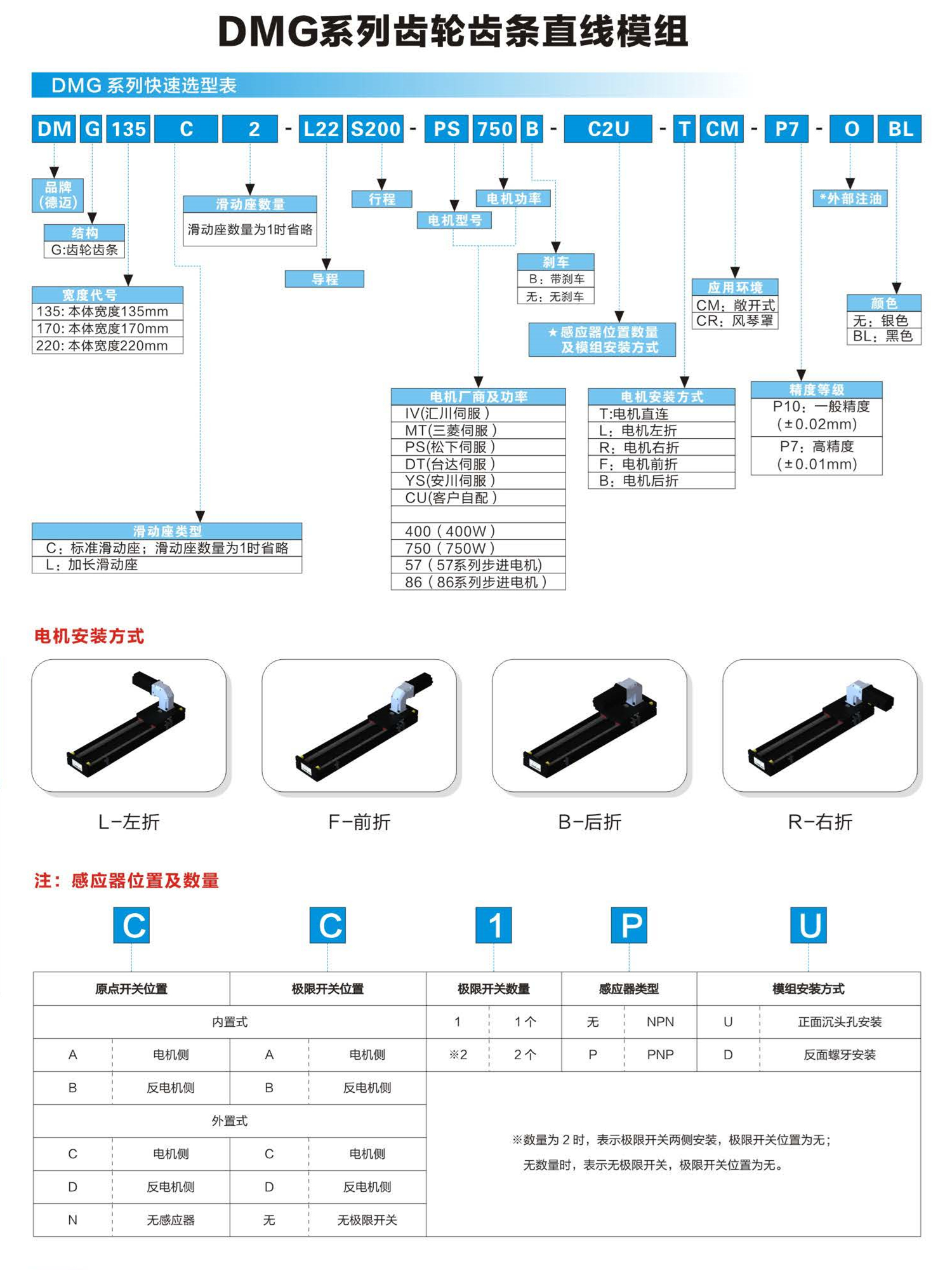

The series of products adopt rack and pinion as the transmission structure, featuring good rigidity, large load-bearing capacity, high precision and the ability to be spliced for long strokes. This series of specifications includes DMG135, DMG170 and DMG220.
Basic parameters:
Compatible motor: 750/1500W
Position repetition accuracy: ±0.01mm
Rack lead: 40/20mm
The speed is ≤2000mm/s
Portable weight: ≤85kg for horizontal use; Vertical usage ≤23kg
The long stroke can be spliced according to the customer's requirements
