Features:

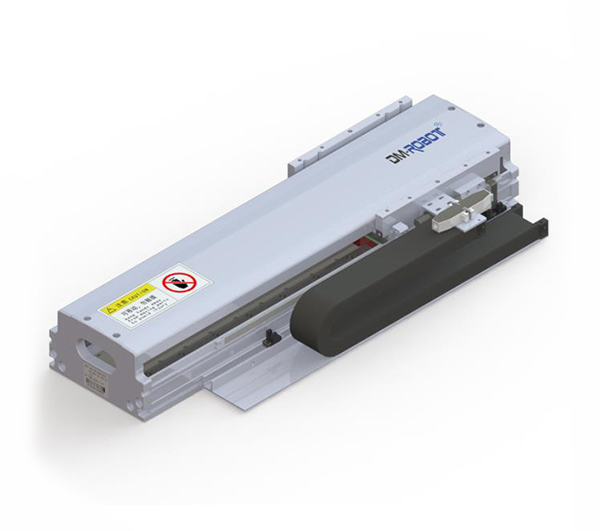

The series of products are driven by linear motors, with good rigidity; they are characterized by fast response, high speed and high accuracy. This series has complete specifications, including DML100, DML135, DML170, and DML220 series.
Basic parameters:
Matching motor: PM250/PM400
Position repeatability accuracy: ±0.002mm
Speed ≤2500mm/s
Can be carried weight: horizontal use ≤80kg;
Standard effective stroke: 50~4172mm/(50 intervals)
