Features:

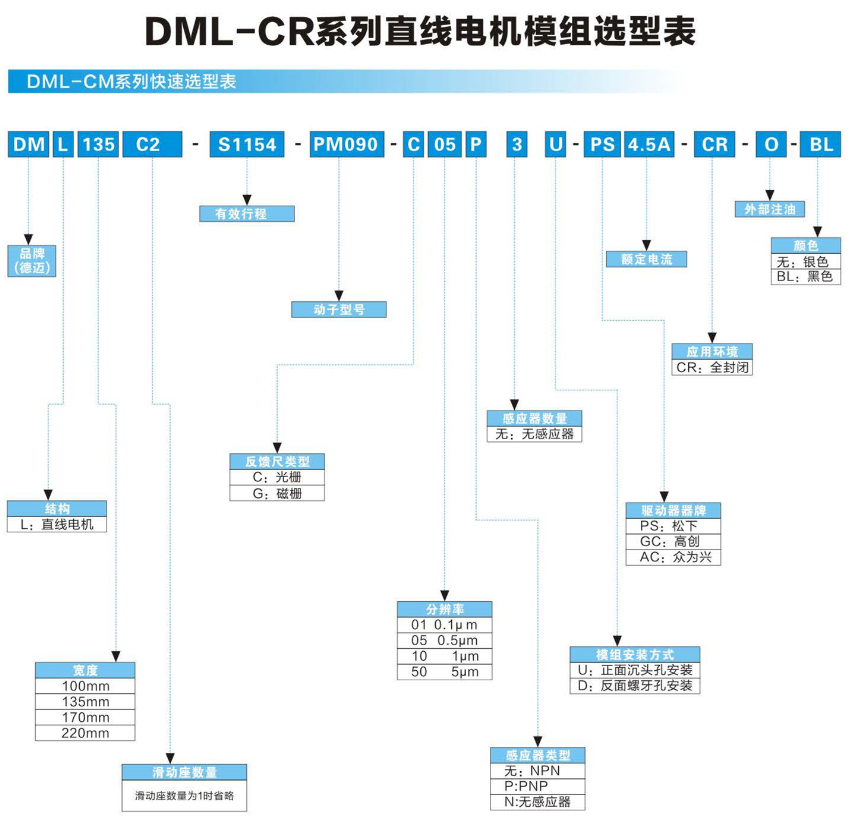

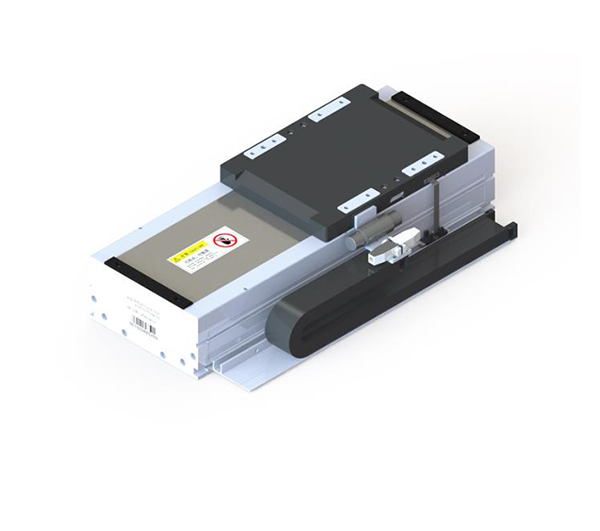

The series of products are driven by linear motors, with good rigidity; they are characterized by fast response, high speed and high accuracy. This series specifications include DML100, DML135, DML170, and DML220 series.
Basic parameters:
Matching motor: PM220/PM43750
Position repeatability accuracy: ±0.002mm
Speed ≤2500mm/s
Can be moved weight: horizontal use ≤150kg;
Standard effective stroke: 50~3990mm/(50 intervals)
