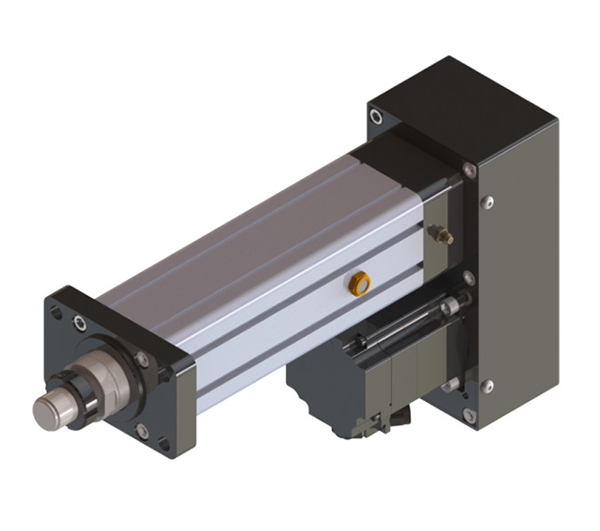

Features:

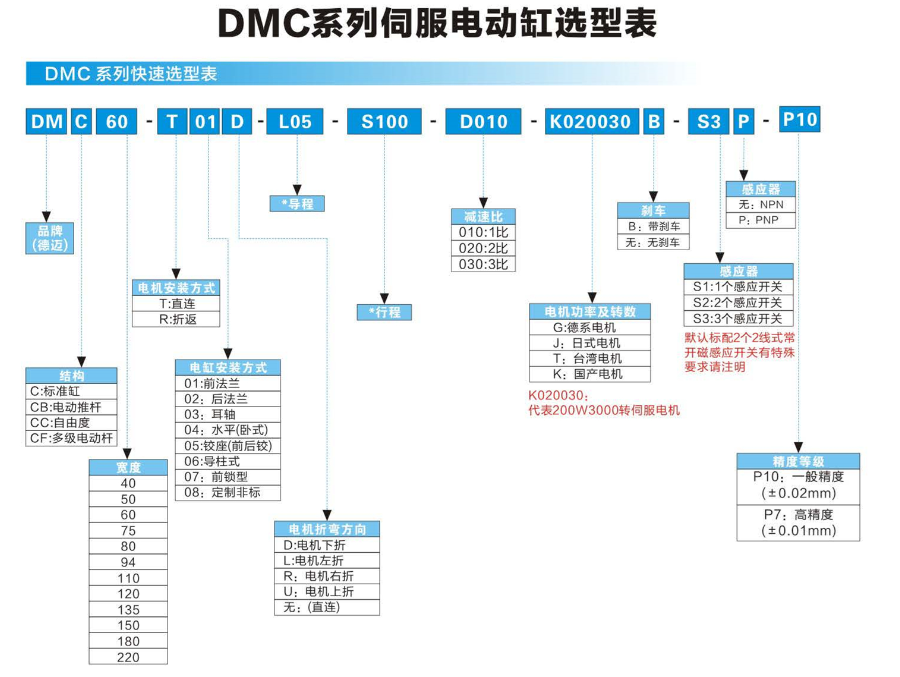

The series of products drive the screw through the motor , and then convert the screw movement into the linear motion of the push rod. The product has a compact structure, small size, low noise, good rigidity and greater bearing capacity; it can accurately control the position and speed to achieve high-speed and stable operation, which can replace the cylinder well. This series has complete specifications and can be used for multiple structures and motor installation methods, including DMC40, DMC50, DMC60, DMC75, DMC80, DMC94, DMC110, DMC120, DMC135, DMC150, DMC180, DMC220 series.

Basic parameters:

adapter motor: servo 7.5/11/15/22K W

Position repeatability accuracy: ±0.01mm

Screw lead: 10, 20, 25mm

Maximum speed ≤333.33mm/s

Permissible maximum thrust: ≤224.49KN
