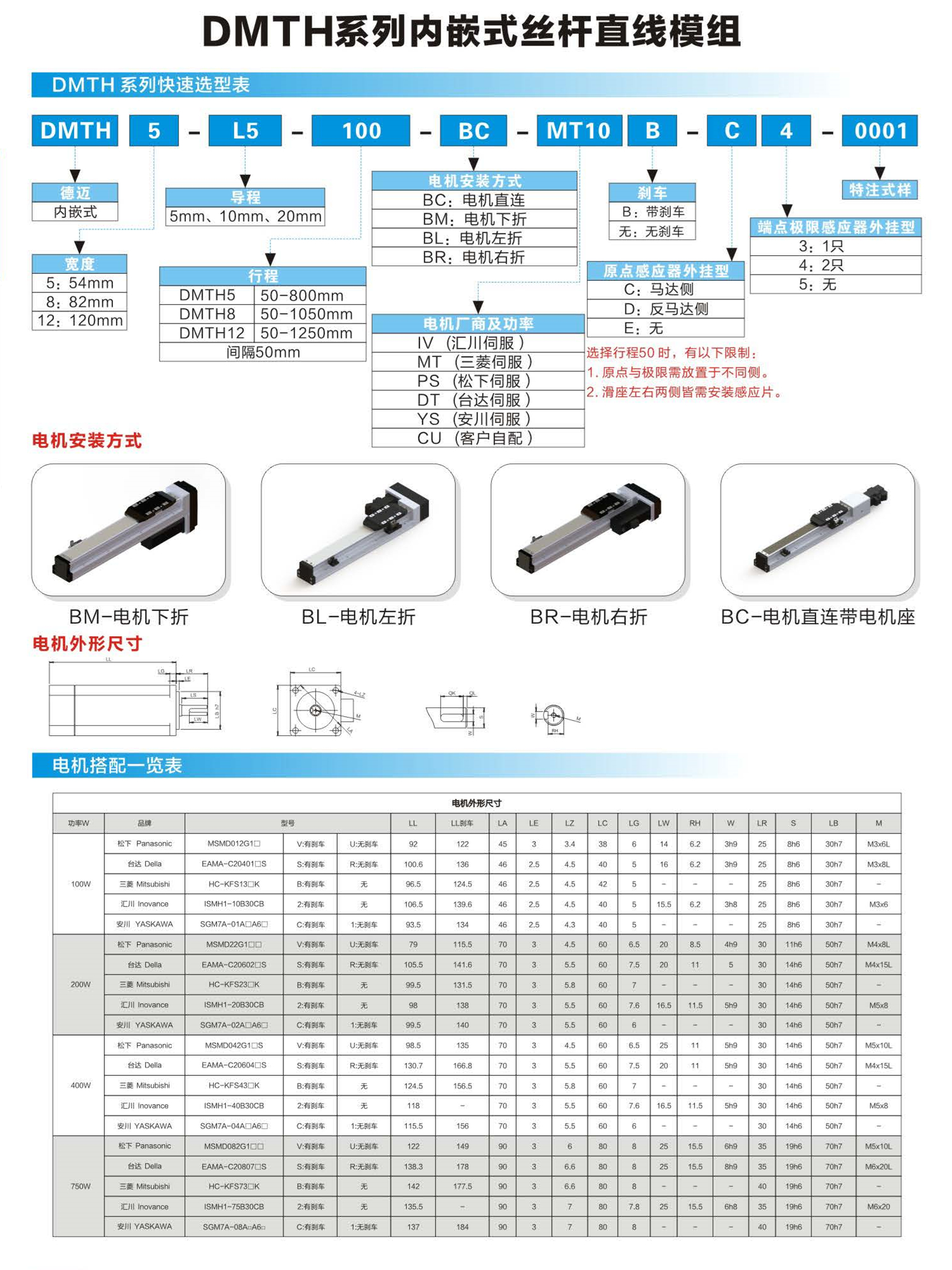

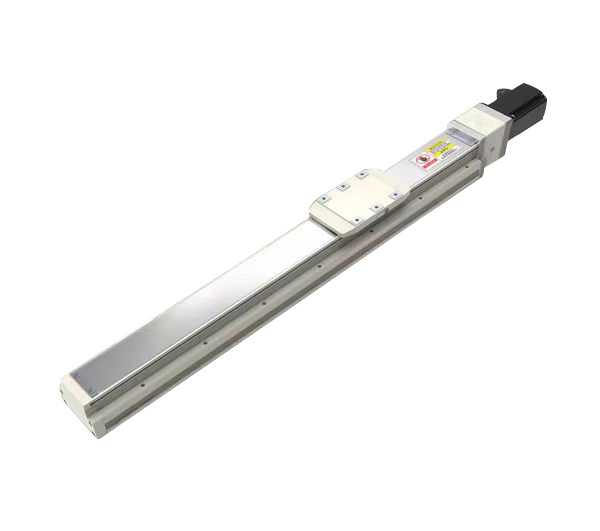

Aluminum embedded lead screw module DMTH8

Features:

Series products are aluminum embedded structure, light weight, good rigidity; It has the characteristics of fast response, short positioning time, good dynamic performance and high rigidity. This series has complete specifications, including DMTH5, DMTH8, DMTH12 series.

Basic parameters:

Standard motor: Step 57, servo 100/200/400W

Position repetition accuracy: ±0.01mm

Lead of screw: 5, 10, 20mm

Speed ≤1000mm/s

Movable weight: horizontal use ≤50kg; Vertical use ≤15kg

Standard effective stroke: 50~1100mm/(50 interval)
