The linear motor uses the interaction of current (I) and magnetic field (B) to generate thrust (F).

Coupled with the use of magnet arrangement and multi-motor, it can realize independent movement of unlimited stroke and single-axis multi-motor.

By combining precise servo feedback, the control of nano positioning accuracy can be easily achieved.

Basic parameters:

Position repeat accuracy: ±0.002(mm)

Continuously transportable weight: 4 (kg)

Speed: 2500 ( mm/s)

Continuous thrust: 28 (N)

Thrust: 75 (N)

Standard travel: 90-1290mm

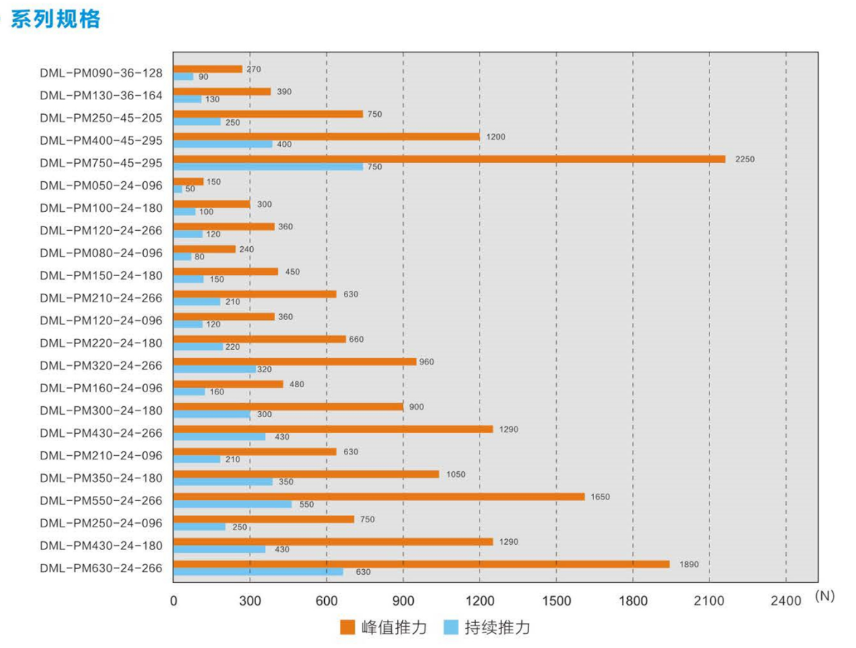

The following table is used to select the adaptive stator model according to the required thrust. Match the appropriate stator according to the movable model; the stator model has standard length and can be spliced according to the required stroke. If there are special stroke requirements, please contact our sales staff or technician to explain the customized stroke length.
